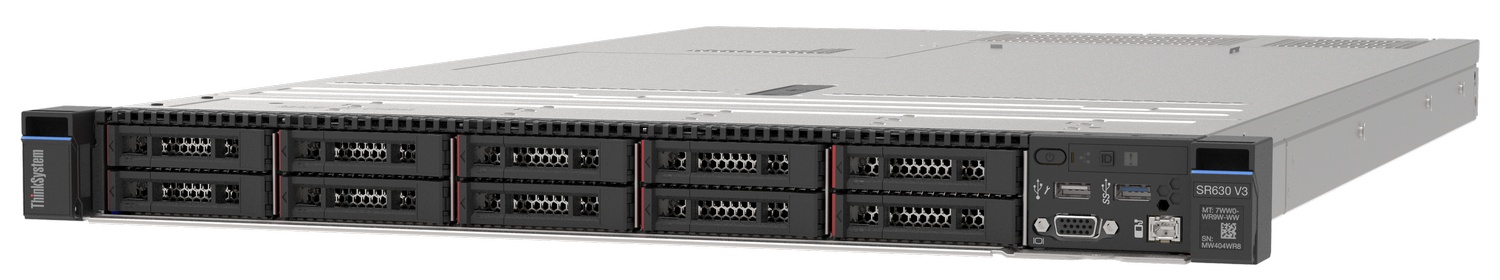

Servidor Lenovo ThinkSystem SR630 V3 Intel Xeon Silver 4510 32GB DDR5

LENOVO ThinkSystem SR630 V3 4510 32GB

The ThinkSystem SR630 V3 offers numerous features to boost performance, improve scalability and reduce costs:

• Supports one or two 5th Gen Intel Xeon Processor Scalable processors

  • Up to 64 cores and 128 threads

  • Core speeds of up to 3.9 GHz

  • TDP ratings of up to 385 W

• Supports one or two 4th Gen Intel Xeon Processor Scalable processors

  • Up to 60 cores and 120 threads

  • Core speeds of up to 3.7 GHz

  • TDP ratings of up to 350 W

• Support for DDR5 memory DIMMs to maximize the performance of the memory subsystem:

  • Up to 32 DDR5 memory DIMMs, 16 DIMMs per processor

  • 8 memory channels per processor (2 DIMMs per channel)

  • Supports 1 DIMM per channel operating at 5600 MHz (5th Gen processors) or 4800 MHz (4th Gen processors)

  • Supports 2 DIMMs per channel operating at 4800 MHz (5th Gen processors) or 4400 MHz (4th Gen processors)

  • Using 256GB 3DS RDIMMs, the server supports up to 8TB of system memory

• Supports up to three single-width GPUs, each up to 75W for substantial processing power in a 1U system.

• Supports up to 12x 2.5-inch hot-swap drive bays, by using combinations of front-accessible (up to 10 bays) and rear-accessible (2 bays).

• Supports four 3.5-inch drive bays for lower-cost high-capacity HDD storage.

• Supports 16x EDSFF NVMe drives, a new form factor drive for high-density and high-performance storage.

• Supports up to 16x NVMe drives without oversubscription of PCIe lanes (1:1 connectivity) and without the need for additional NVMe adapters. The use of NVMe drives maximizes drive I/O performance, in terms of throughput and latency.

• Supports 12x SATA drives using the onboard SATA controller (no additional adapter needed), enabling lower cost, high capacity storage solution.

• Supports 12x SAS drives using a variety of 12Gb RAID controllers and SAS HBAs.

• Supports high-speed RAID controllers providing 12 Gb SAS connectivity to the drive backplanes. A variety of PCIe 3.0 and PCIe 4.0 RAID adapters are available.

• Supports up to two externally accessible 7mm hot-swap drives for operating system boot functions. Optional RAID-0 or RAID-1.

• Supports M.2 drives for convenient operating system boot functions or data storage. Available M.2 adapters support either one M.2 drive or two M.2 drives. Optional RAID-0 or RAID-1.

• Supports up to 5x PCIe slots, 3x at the rear of the server and 2x at the front of the server. Also supports 1x OCP 3.0 slot, either in the front or in the rear.

• The server is Compute Express Link (CXL) v1.1 Ready. With CXL 1.1 for next-generation workloads, you can reduce compute latency in the data center and lower TCO. CXL is a protocol that runs across the standard PCIe physical layer and can support both standard PCIe devices as well as CXL devices on the same link.

• The server has a dedicated industry-standard OCP 3.0 small form factor (SFF) slot supporting a variety of Ethernet network adapters. A simple-swap mechanism with a thumbscrew and pull-tab enables tool-less installation and removal of the adapter. The adapter supports shared BMC network sideband connectivity to enable out-of-band systems management.

• The server offers PCI Express 5.0 I/O expansion capabilities that doubles the theoretical maximum bandwidth of PCIe 4.0 (32GT/s in each direction for PCIe Gen 5, compared to 16 GT/s with PCIe Gen 4 and 8 GT/s with PCIe Gen 3). A PCIe 5.0 x16 slot provides 128 GB/s bandwidth, enough to support a dual-port 200GbE network connection.
